CAD and Graphic Design Work – Personal

Product visualization artwork of my original designs. Graphic design work as well. Designs copyright Dan Manley 2025

481224927_10231600668612028_195944081672368580_n
481242581_10231604453426646_2967280356761541629_n
481083205_10231728917458169_5077429895168329744_n
car-overall-reduce
Webpage-group
electronic-music-book-render
Golf-Ball-House_F-boat
Golf-Ball-House_Rear
Golf-House_Bedroom-Suite-
Golf-House_Kitchen_additions
Bathroom-View
Golf-House_Night-Outline
Golf-House-on-Shore
Frog themed floating campsite. Frog is tent, sleeping quarters in head.
Shown with doors and windows open, zipped covers. Flower dining table with cooler in center, bathroom in back.
Flower in back shelters toilet area.
Night time view, with lamps on and snail firepit lit.
Looking to rear of frog.
Looking to front and bed.
View inside head. Approx 5' of clearance over mattress.
Low-res shower view with firefly motion-sensitive wall sconce lights.
Snail firepit.
Ladybug Bug-B-Q.
Modeled up a series of designs for a "Flat-6" themed ring, in the style of my V8 ring series. Porsche lettering inside the concave detail.
6 element in ribbed, vintage feeling frame. Insets on each side of center give impression of piston rings and rods, inside cylinder bores.
Vintage 6 style number, with shape that suits the frame's shape. Could be for Corvair aficionados.
website-scene-scaled-down

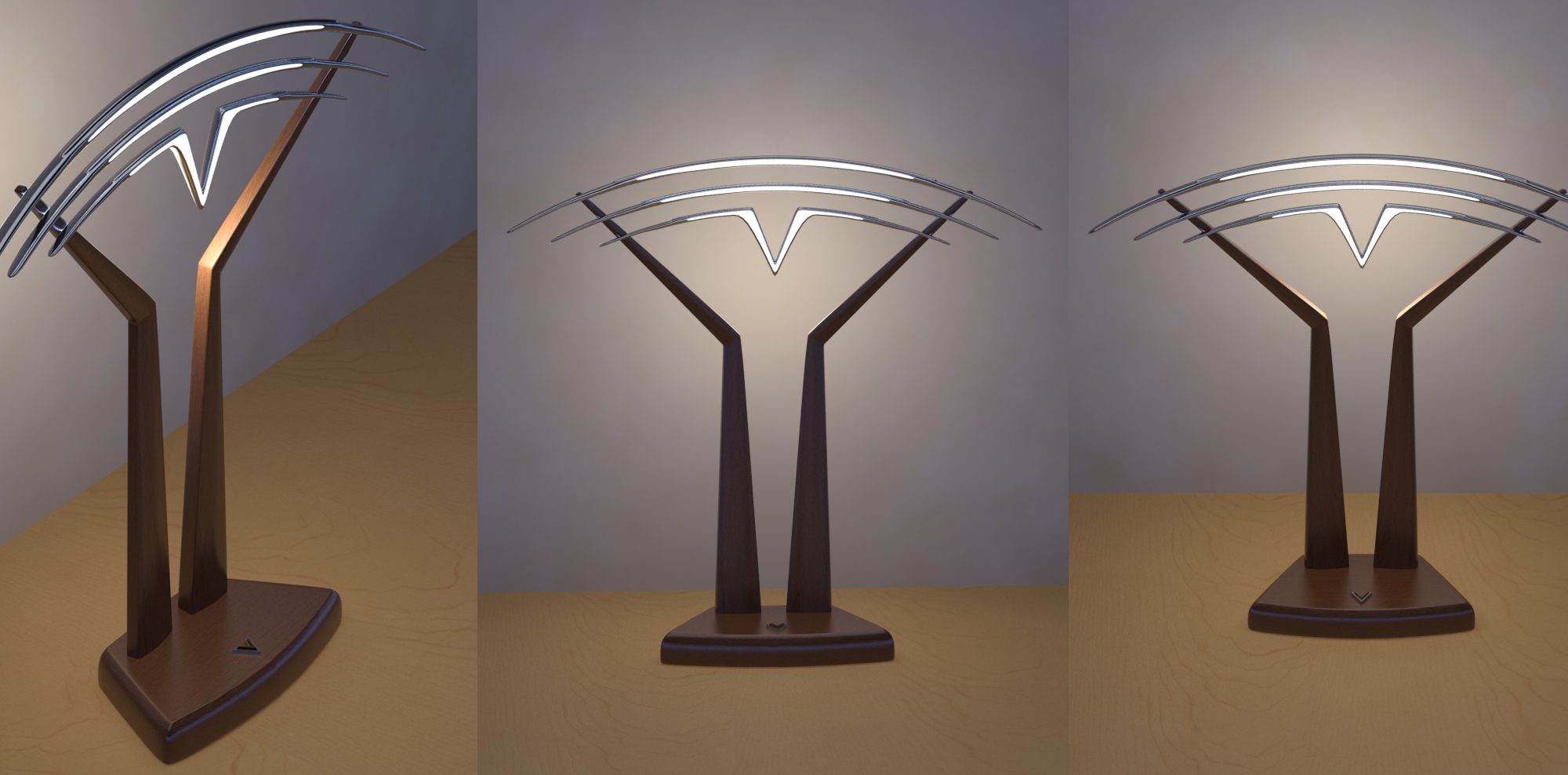

Arc-light. 3ds Max. Would have wooden base, 3D printed arms in metal with LED's behind, backlit inserts in front. Touch-activated.
Sun-lamp. 3ds Max. Conceptual, with 2 light sources controlled by computer linked via wifi to weather source. Lighting changes in color and intensity during day based on sun and moon.
Sun-lamp, concept shown as if light projectors on 2 screens displayed live video image feeds of sun and moon.
Art Deco themed mood lamp. 3ds Max. Interior spear would have color-changing LED's to create a wash of color on open area.
50's themed lamp, using hubcap/perforated metal shade as done on automotive lamps. 3ds Max. Wooden base, with routed out inset in each element, strip LED's inserted.
Organic shape lamp. 3ds Max. Shown in hammered nickel finish.
Hangtime lamp. 3ds Max. Main light source adjustable via pivot handle, and front bezel. LED accent lamps in middle hang from arc to remain centered.
Ribbed 3D print lamp concept. 3ds Max.
50's themed lamp variations. 3ds Max. Wood or 3D printed elements, lit with LED strip lights.
Ocean and mid-century modern themed 3D print hanging lamp shade concepts. 3ds Max.
Organic or alien theme 3D printed hanging lamp concept.
Pop-up themed hanging lamps. 3ds Max. Would be 3D printed. Right example has smoothing and modifiers applied.
3D printed horns or branches on mid-century modern inspired wood base. Would be lit internally with LED's and have downlights distributed throughout.
Variations on mid-century modern sculptural lamp concept. LED downlighting on arms.
Flying Santa Sleigh model for 2018 holiday card. 3ds Max. Inspired by 50's GM concept cars.
The license plate is a holiday saying of the father-in-law's.
Shift knob is a tiki-themed santa which was 3D printed into a tree ornament, and given as gifts.
Flying Santa Sleigh model for 2014 Holiday card. 3ds Max. Inspired by 40's boats and vintage Cadillacs and Pontiacs.
Hot Rod Santa Flying Sleigh model for 2004 Holiday card. AutoCAD model.
Beach house model, built in AutoCAD for refresher class in program, 2011. Won first place in CA State Fair.
Rear view of beach house, AutoCAD.
462847140_10230053247967479_2700657336922378773_n
462971734_10230063500743792_9032897652090224674_n
Living room design of beach house including matching furniture.
Beach house elevations.
Beach house floor plan.
463148359_10230063558345232_7732272264459977021_n
Future city modeling exercise. 3ds Max.
Mozart 3D model, created from paintings considered the most accurate, Mudbox model.
Manley Design themed watch concept. 3ds Max.
Cadillac themed cane handle for 3D printing. 3ds Max.
Chain pendant model for 3D printing. 3ds Max.
V8 toolbox "hood ornament" which was 3D printed in plastic and painted silver. Attaches via magnets in base.
Manley Design ring concept, based on emblem on 2018 flying santa sleigh, for 3D printing. 3ds Max.
"Rude" name emblem done in Ford style, along with vintage V8 emblem, 3D printed in nickel for custom cane.
V8 Tiki concept for 3D printing, based on shift knob from 2018 flying santa sleigh. 3ds Max.
3D print of V8 tiki, painted with white pearl, silver and red insets.
One of a series of "Appliance Critters" modeled in 3ds Max. To be 3d printed.
Art Deco themed ribbed desk. Wood, stainless and glass materials.
Rib chair, would have articulated ribs in metal and leather on base. 3ds Max.
Ribbed chair and wooden music stand concept, holding electronic music book idea from 1989. 3ds Max.
Lounger, cast metal and leather concept. 3ds Max.
Leaf chair shown in metal and leather. 3ds Max.
Leaf chair shown in wood. 3ds Max.
Low-slung metal and draped leather chair concept. 3ds Max.
Hot Rod themed Manley Design logo.
Vodka bottle concepts. 3ds Max.
Vase and candle holder concepts. 3ds Max.
Pontiac cylinder head modeled in Inventor, 2003.
Space probe, 3ds Max.
One of several architectural themed cubicle concepts.
Cemetery themed nightstand design, AutoCAD, 2002.
Cad-B-Que concept, one of a series designed in 1998. Modeled in AutoCAD in 2001.
Car-B-Que concept, 69 Camaro theme, one of a series designed in 1998. Modeled in AutoCAD in 2001.
Views of house designed and modeled for my sister. Was built in New Hampshire. 2003.
Grouping of various AutoCAD model designs, 2002.
City Couch model, AutoCAD. Designed in 1987, modeled in 2001.
City theme coffee table, AutoCAD. Designed in 1987, modeled in 2001.
One of 2 house remodel visualization models, created in AutoCAD. Conversion of attic space into living quarters.
Bedroom set and interior concept, part of house remodel design project. AutoCAD.
Interior view of attic conversion visualization model.
AutoCAD model of train bed built for customer. For blueprint production.
AutoCAD model of train trundle bed and caboose themed dresser. For blueprint production.
Iso view lead blueprint from package produced for clubhouse bed design.
AutoCAD model of lighthouse themed clubhouse bed. For visualization and blueprints if needed.
AutoCAD model of cottage themed clubhouse bed. For visualization and blueprints if needed.
AutoCAD model of Tiki themed clubhouse bed. For visualization and blueprints if needed.
AutoCAD visualization model of matching Tiki themed armoire.
AutoCAD visualization model of armoire built from metal and glass.
Art Deco themed armchair. AutoCAD model, 2002.
No-hands watch concept, modeled in 2001. AutoCAD.
Speaker design, modeled in AutoCAD. 2003.
AutoCAD visualization of engine-themed coffee service setup. Carbs are creamer dispensers.
Old idea for path lights which project images. AutoCAD visualization, 2002.
Frog and Dragonfly tiki design. Illustrator and Photoshop.
Mid-century inspired tiki design. Illustrator and Photoshop.
M for Manley tiki design. Illustrator and Photoshop.
Monkey Tiki design. Illustrator and Photoshop.
Birthday card for son, celebrating his trip to Alaska during the 6th grade.
T shirt design, welcoming our son back from his trip to Alaska.
Card I made for my grandmother "commemorating" her trip out to So. CA when she was 97. 2009.
70th birthday card "chemistry set" created in Photoshop, gift to my father, who was a chemistry and science professor.
DVD cover graphics. Combination of 3D rendered images and Photoshop work.
Label artwork done for friend's product.
Photoshop image created as part of educational materials regarding protecting the environment.
